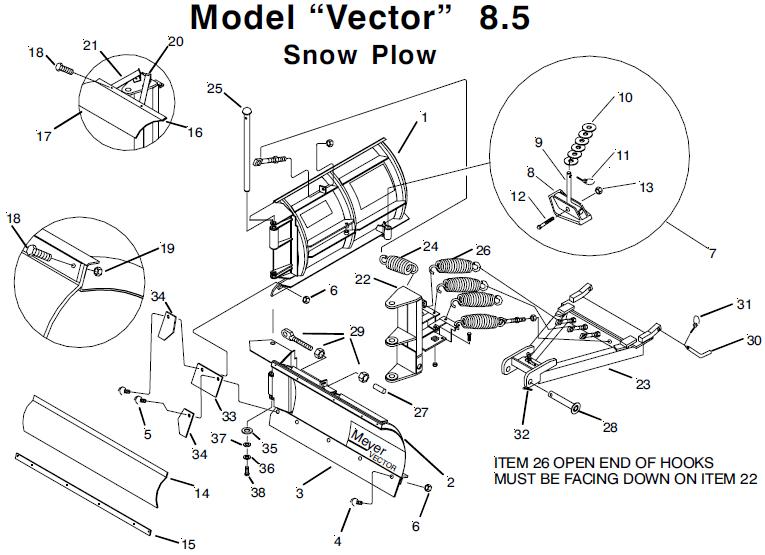

MeyerVPlow.com - Meyer EZ-Vector V Plow Exploded View and Parts Diagram

Item	Part No.	Qty.	Description	Item	Part No.	Qty.	Description
	09258	2	Moldboard R.H. & L.H. Wing OBSOLETE		16506	1	1 A-Frame and Pivot Carton
1	09254	1	•R.H. WingOBSOLETE	22	13625	1	1 • Pivot Assembly
2	09255	1	•L.H. WingOBSOLETE	23	13630	1	• A-Frame
3	09259	1	•Cutting Edge (2 sections)	24	07178	2	• Wing Spring
	08692	1	•Hardware Bag	25	07069	1	• Hinge Pin
4	21961	8	•• Bolt C 1/2-13 x 2 Gr. 5	26	07216	4	• Trip Spring
5	22066	2	•• Bolt C 1/2-13 x 2-3/4 Gr.5		11793	1	• Lift Arm
6	20307	10	•• Locknut 1/2-13		09916	1	• Plow Marker Kit
7	09126	2	•Runner & Spindle Assembly		08687	1	•Hardware Bag
8	07006	1	•• Runner	27	07031	6	•• Eye Bolt Cap
9	12057	1	•• Spindle	28	12396	1	•• Pivot Pin
10	20363	10	10 •• Flatwasher 1-1/4”	29	09124	6	•• Eye Bolt w/Locknut
11	22083	1	1 •• Lynch Pin	30	11101	2	•• Hinge Pin
12	20101	1	•• Bolt H-1/2-13 x 3”	31	22083	2	•• Lynch Pin
13	20307	1	•• Locknut 1/2-13	32	20421	1	•• Cotter Pin 1/4" x 2-1/4"
	12170	1	Snow Deflector KIT (OBSOLETE)	33	12198	11	•• V-Plow Center Edge
14	12189	2	•Deflector (OBSOLETE)	34	12381	2	•• Center Plate
15	12191	2	•Bar	35	20357	1	•• 5/8 Flatwasher
16	12277	1	•Reinforcment Bar	36	20328	1	•• 7/16 Lockwasher
17	12285	1	•Center Deflector & Decal	37	20354	1	•• 7/16 Flatwasher
	08691	1	•Hardware Bag	38	20072	1	•• Bolt H 7/16-14 x 1-1/4”
18	20006	18	•• Bolt H 1/4-20 x 1-1/4”		07996	1	•• Cable Tie
19	20312	18	•• Nut, Eslok 1/4-20	•• Parts indented are included in the carton, bag or assembly under which they are indented.
20	12275	2	•• Angle
21	12276	2	•• Deflector Extension

LENGTH OF MOLDBOARD	HEIGHT OF MOLDBOARD	THICKNESS OF MOLDBOARD	NO. OF VERTICAL RIBS	NO. OF TRIP SPRINGS	CUTTING EDGE SIZE	WIDTH AT FULL ANGLE	SIZE OF SECTOR	POWER ANGLING RAMS
8 1/2'	28"	12 GA	6	4	1/2" X 6"	88"	N/A	1 1/2" X 12"
