PARTS LIST

Item Part No. SVLD7.5 Part No. SV 8.5 Part No. SV2 8.5 Part No. SV 9.5 Part No. SV2 9.5  Part No. SV2 10.5 Qty.  Description
Moldboard Assembly
  09329  09217 09233 09226 09236 09237 1 R.H. & L.H. Wing
1 09328 09208 09232 09212  09234 09280 1 • R.H. Wing
2 09327 09209 09231 09213 09233 09279 1 • L.H. Wing
3 13200 12540 12540 12568 12568 13081 2 •• Trip Edge Weldment
4 22438 22438 22438 22438 22438 22438 8 •• 1 X 2-1/2” Pin
5 20420 20420 20420 20420 20420 20420 8 •• 1/4 x 2” Cotter Pin
6 13205 12528 12528 12528 12528 12528 2 •• T -Bar Weldment
7 12978 07215 07215 07215 07215 07215 4 •• Trip Spring
8 20145 20145 20145 20145 20145 20145 2 •• Bolt H 5/8-11 x 3” Gr. 5
9 20318 20318 20318 20318 20318 20318 2 •• Locknut 5/8-11
10 20357 20357 20357 20357 20357 20357 4 •• Flatwasher 5/8
11 09124 09124 09124 09124 09124 09124 4 •• Eyebolt w/Locknuts and Cap
  09112 09218 09218 09219 09219 09110 1 Cutting Edge Kit
12 09331 09210 09210 09211 09211 09111 2 • Cutting Edge
  08222 08222 08222 08222 08222 08222 1 • Hardware Bag
13 20307 20307 20307 20307 20307 20307 11 •• Locknut 1/2-13
14 21961 21961 21961 21961 21961 21961 9  •• Bolt C 1/2-13 x 2”
18 22066 22066 22066 22066 22066 22066 2 •• Bolt C 1/2-13 x 2-3/4” Gr.5
09332 09229  09229  09229  09229  09229  1 • Bottom Belt Kit
** 15 13208 12538 12538 12538 12538 12538 1 •• Bottom Belt
  08261 08131 08131 08131 08131 08131 1 •• Hardware Bag
* 16 12549 12549 12549 12549 12549 12549 2  ••• Backing Plate
* 17 20307 20307 20307 20307 20307 20307 2 ••• Locknut 1/2-13
* 18 22066 22066 22066 22066 22066 22066 2 ••• Bolt C 1/2-13 x 2-3/4” Gr.5
  08144 08752 08752 08752 08752 08752  1 • Hardware Carton
** 19 13207 12557 12557 12557 12557 12557 1 •• Pivot Pin
* 20 20095 20095 20095 20095 20095 20095 1 •• Bolt H 1/2-13 x 1-1/2” Gr. 5
* 21 20329 20329 20329 20329 20329 20329 1 •• Lockwasher 1/2
** 08852 08852 08852 08852 08852 08852 1 •• Plow Marker Kit
22 811000095 811000095 811000095 811000095 811000095 811000095 2 ••• Plow Marker
23 22249 22249 22249 22249 22249 22249 4 ••• Locknut 1/4-20 SS
24 22250 22250 22250 22250 22250 22250 4 ••• Bolt H 1/4-20 x 1” SS
09339 09230  09230  09230  09230  09230  1 Top Deflector Kit
** 25 13323 12536 12536 12536 12536 12536 1 • Top Deflector
08745 08745 08745 08745 08745 08745 1 • Hardware Bag
* 26 13724 13724 13724 13724 13724 13724 1 •• Deflector Brace
* 27 20028 20028 20028 20028 20028 20028 7 •• Bolt H 5/16-18 x 1-1/4”Gr. 2
* 28 20352 20352 20352 20352 20352 20352 7  •• Flatwasher 5/16
* 29 20304 20304 20304 20304 20304 20304 7 •• Locknut 5/16-18
30 13855 13755 13755 13755 13755 13755 1 A-Frame



* (SV & SV2) Items in 08660 Hardware Bag included in 08752

* (SVLD) Items in 08260 Hardware Bag included in 08144

* * (SV & SV2) Items packed in the 08752 Hardware Carton

* * (SVLD) Items packed in the 08144 Hardware Carton

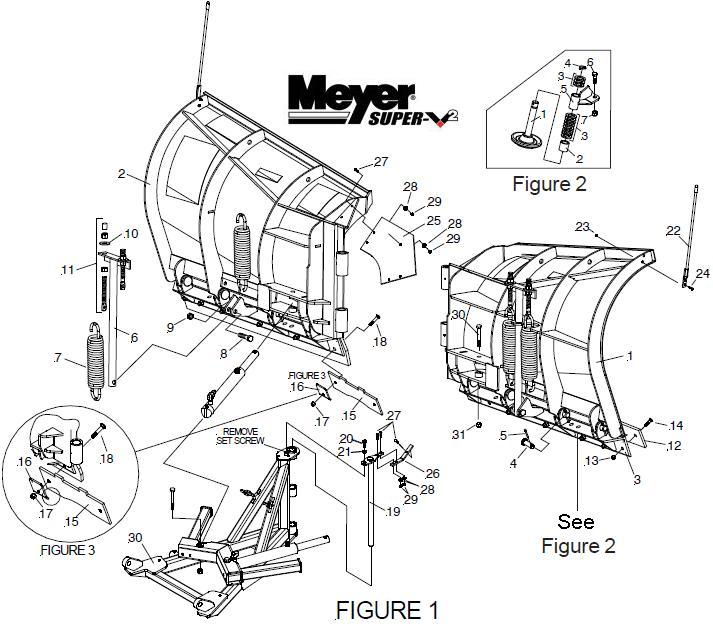

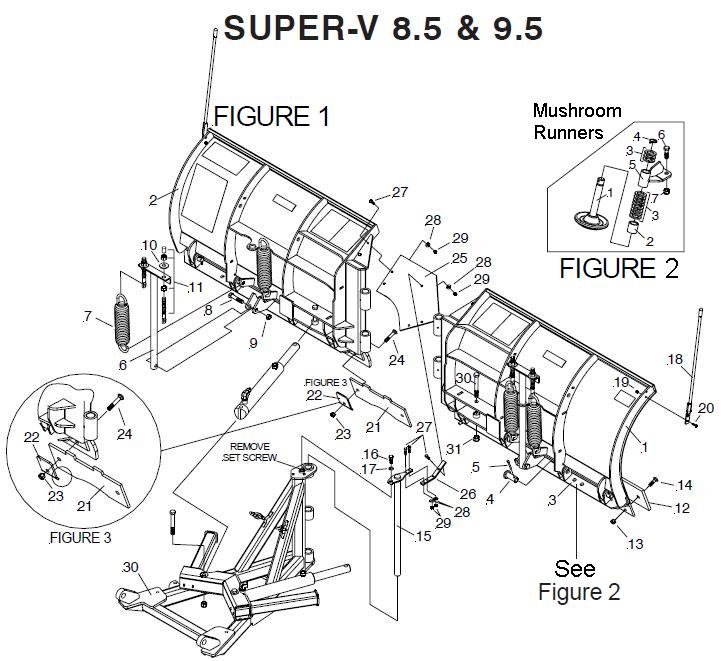

OPTIONAL MUSHROOM RUNNERS - FIGURE 2

Item Part No. Qty Description
  09214 1 Super-V Mushroom Runner Kit
1 12394 2 • Mushroom Shoe Casting Assy.
2 12449 2 • Runner Spacer
3 20363 22 • Runner Washer
4 22083 2 • Lynch Pin
5 12545 2 • Runner Bracket Assy.
  08585 1 • Hardware Bag
6 20164 4 •• Bolt H 5/8-11 x 2” Gr. 5
7 20309 4 •• Locknut 5/8-11


Specifications:

Blade Model #:
 Meyer Super-V LD 7.5		 Blade Type:
 Bottom-Trip		 Moldboard Length:
 7' 6"		 Moldboard Height:
 28"
Moldboard Gauge:
 14 gauge Steel		 Vertical Ribs:
 4 per wing		 Plow Trip Springs:
 2 per wing		 Cutting Edge:
3/8" x 6"
Avg Width at Full Angle:
 81"		 Angling Rams:
 1-1/2" x 12" double acting		 Weight Complete:
 582 pounds
Blade Model #:
 Meyer Super-V 8.5		 Blade Type:
 Bottom-Trip		 Moldboard Length:
 8' 6"		 Moldboard Height:
 30.5"
Moldboard Gauge:
 12 gauge Steel		 Vertical Ribs:
 4 per wing		 Plow Trip Springs:
 2 per wing		 Cutting Edge:
1/2" x 6"
Avg Width at Full Angle:
 88"		 Angling Rams:
 1-1/2" x 12" double acting		 Weight Complete:
 900 pounds
Blade Model #:
 Meyer Super-V 9.5		 Blade Type:
 Bottom-Trip		 Moldboard Length:
 9' 6"		 Moldboard Height:
 30.5"
Moldboard Gauge:
 12 gauge Steel		 Vertical Ribs:
 4 per wing		 Plow Trip Springs:
 2 per wing		 Cutting Edge:
1/2" x 6"
Avg Width at Full Angle:
 99"		 Angling Rams:
 1-1/2" x 12" double acting		 Weight Complete:
 940 pounds
Blade Model #:
 Meyer Super-V2 8.5		 Blade Type:
 Bottom-Trip		 Moldboard Length:
 8' 6"		 Moldboard Height:
 38.25"
Moldboard Gauge:
 12 gauge Steel		 Vertical Ribs:
 4 per wing		 Plow Trip Springs:
 2 per wing		 Cutting Edge:
1/2" x 6"
Avg Width at Full Angle:
 88"		 Angling Rams:
 1-1/2" x 12" double acting		 Weight Complete:
 954 pounds
Blade Model #:
 Meyer Super-V2 9.5		 Blade Type:
 Bottom-Trip		 Moldboard Length:
 9' 6"		 Moldboard Height:
 38.25"
Moldboard Gauge:
 12 ga Steel		 Vertical Ribs:
 4 per wing		 Plow Trip Springs:
 2 per wing		 Cutting Edge:
1/2" x 6"
Avg Width at Full Angle:
 99"		 Angling Rams:
 1-1/2" x 12" double acting		 Weight Complete:
 994 pounds
Blade Model #:
 Meyer Super-V2 10.5		 Blade Type:
 Bottom-Trip		 Moldboard Length:
 10' 6"		 Moldboard Height:
 40.5"
Moldboard Gauge:
 12 gauge steel		 Vertical Ribs:
 4 per wing		 Plow Trip Springs:
 2 per wing		 Cutting Edge:
1/2" x 6"
Avg Width at Full Angle:
 109"		 Angling Rams:
 1-1/2" x 12" double acting		 Weight Complete:
 1034 pounds
